 5tpd flour milling machine

Product Parameters:


Model	Capacity (kg/h)	Power (kw)	Weight (kg)	Dimension (mm)
6F35	Wheat:100-200 Corn (maize):50-100	9.7	800	2450*1000*3500
6F40	Wheat:200-300 Corn/maize: 100-150	13.2	1000	2450*1000*3500
6F50	Wheat: 300-400 Corn/maize :150-200	17.2	1500	2550*1000*3500



6F series of automatic feeding flour machine is suitable for individual processing, it is a small flour mill,and can also be used in food factories to process other cereals, such as wheat,maize, corn, sorghum, soybeans, etc. this type of flour machine uses the principle of wind power lifting, roller grinding and screening, with high production efficiency, good flour extraction performance, no flour lifting, low energy consumption, easy to use and maintain.
Small flour processing machinery is easy to transport, easy to operate, easy to repair and maintain. This machine has the advantages of low energy consumption, low noise, stable and reliable performance. The round screen is used to extract flour, and the screen/sieve is easy to replace. The structure is compact and reasonable, durable, good protection and beautiful appearance. The processing speed of small flour machinery also has a certain impact on flour quality. The lower the speed, the less likely the nutrients are to be destroyed, and the more nutritious flour is.

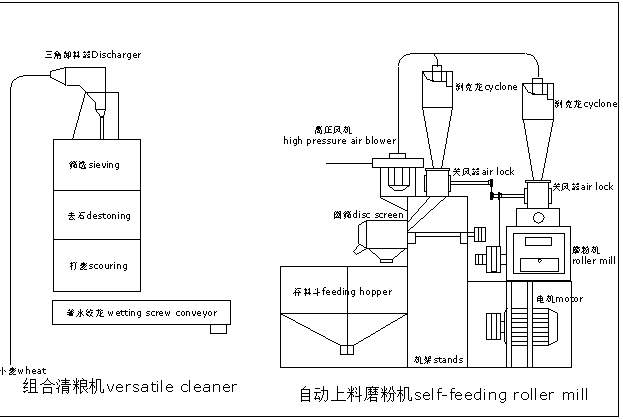

Process flow is as follows:
1. Input material goes through the pipe transferred by air blower and be feeded to the roller mill
2. Be elevated to the rollers by air blower
3. be grinded/milled by couple rolls
4. Beside the rolls there are two unit of testing sifter, only the flour with certain size can pass the sieve, those bigger one will be transferred to the rolls and be grinded again and again till pass the sieve.
