Wheat flour milling machine
Your Are Here: Home > Products > Wheat flour milling machine >

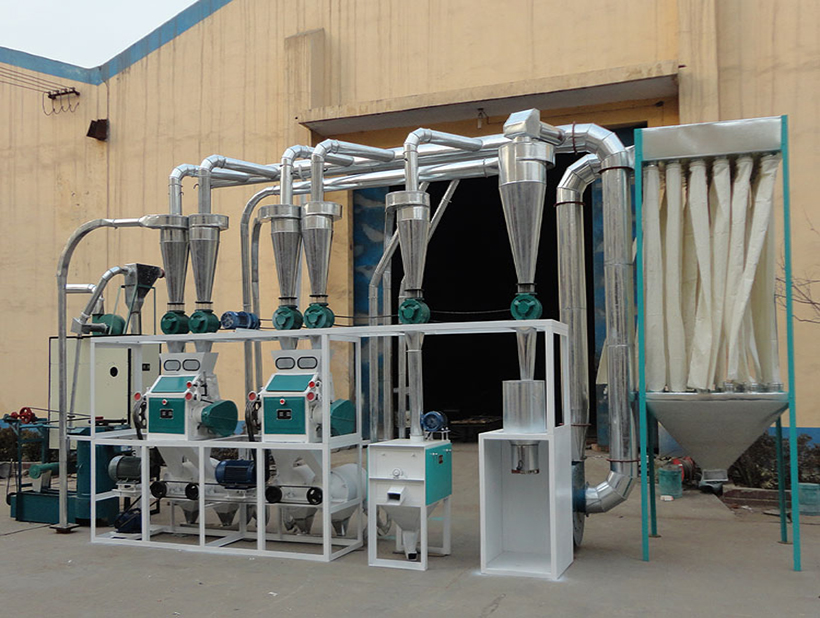

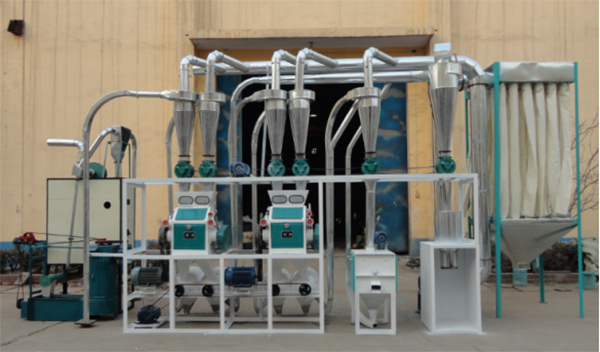

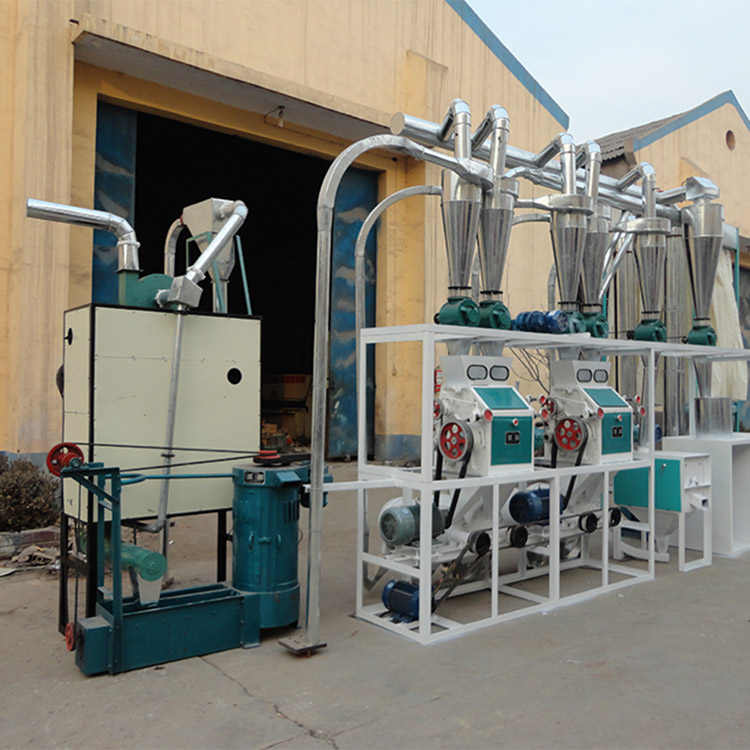

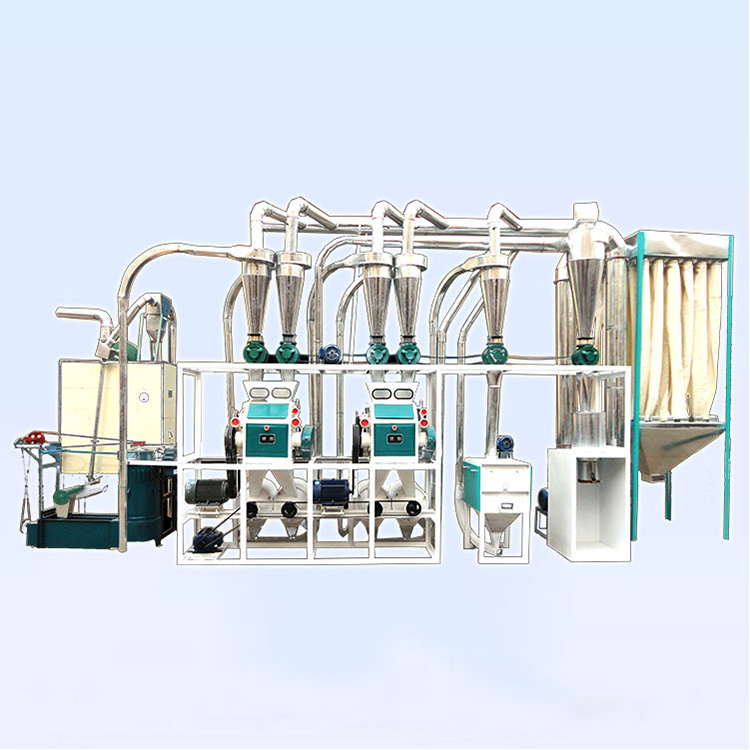

10tpd wheat flour mill plant
10tpd wheat flour mill plant
10tpd wheat flour mill plant
10tpd wheat flour mill plant

10tpd wheat flour mill plant

Categories:Wheat flour milling machine
Capacity:10ton per day
Productivity:70-80%
Power:29.9kw
Weight:
Applications:
Tel:008618039139041

parameter

10tpd wheat flour mill technical data:
1. Flour extraction rate: 75%-80%
2. Capacity : 10 tons per 24 hours
3. Power supply: about 31.7 kw/ 380V, 50 Hz
4. Workshop space required: L*W*H: 8x4x3.5m



Detail

 Processing technology
1. Technology of cleaning parts: one set of Multipurpose cleaning machine, two sets Magnetic Separator, one set dust collector and one set Cyclone pipes.
2. Technology of flour milling parts: two sets of 6F 2240 roller mill, one set bran finisher, one set Bag filter,etc.
It is suitable for both private and industrial business to process supplied material of grain. This machine uses wind to elevate and combines grinding and screening together. With high productivity and low power consumption, it functions well and has no dust releasing and is easy to maintain.

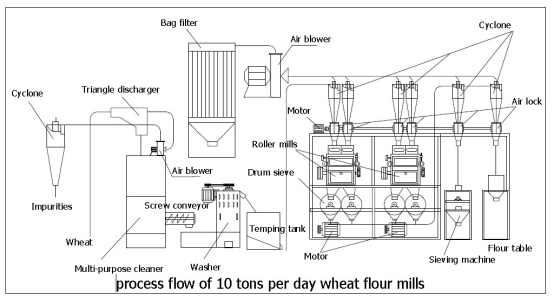

Process flow is as follows
1. Wheat, corn or maize goes through our versatile cleaner which emerges separating, destoning, scouring and wetting into a single whole.
 Classifying:To remove the straws, clods and stones those are bigger than wheat, corn grains.
     De-stoning:To remove the stones by special gravity
     Scouring:Clean the surface of wheat grains
     WettingTo wet the clean wheat grains, preparing for milling part
2. The clean wheat. Corn, maize will go through the pipe transferred by air blower and be feeded to the roller mill
3. Be elevated to the rollers by air blower
4. be grinded by couple rolls
5. Beside the rolls there are two unit of testing sifter, only the wheat, corn, maize flour with certain size can pass the sieve, those bigger one will be transferred to the rolls and be grinded again and again till pass the sieve.
washer and stoner adopts wet method to clean wheat, it is applicable for mill plants to remove stone and sand in the wheat cleaning process. In the process, the machine can remove the dust on the wheat surface, and in the ventral groove of the wheat, as well as pesticide, microbes, ovums, and pollutes. At the meanwhile, the machine can increase the moisture of the wheat and change the physical property and grinding procedure in  conjunction with tempering.
